RAM Mount Verstelbaar statief auto stoelbout montage met TAB20 tablethouder

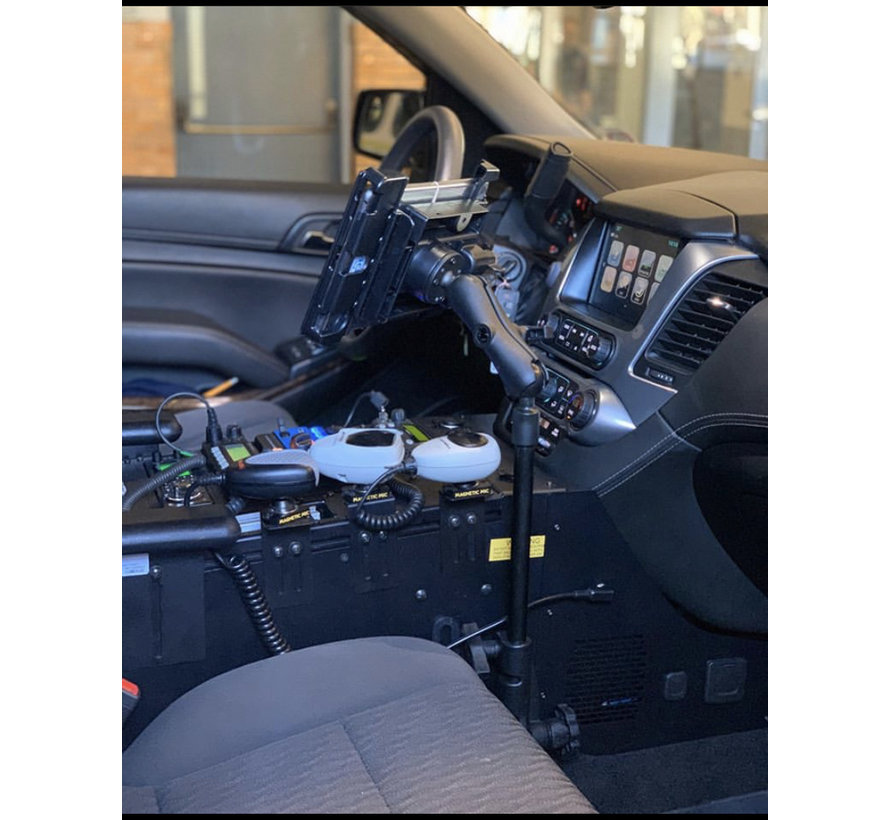

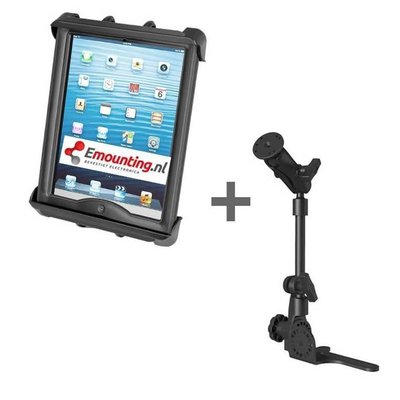

Nieuwe RAM Mount heavy-duty autostoel bevestiging. Deze mount is zeer veelzijdig in montage mogelijkheden aan de stoelbout van de bijrijderstoel. Het statief is van stevig aluminium en heeft bovenop een C-Kogel set met de RAM Mount Tab-tite universele iPad Air/ TAB A/S2 met dikkere cases (zoals Gumdrop, Griffin) RAM-HOL-TAB20U. Kan zonder boren in voertuig gemonteerd worden (zie filmpje), inclusief montage materiaal en stelvoet.
Blending the best of versatility, strength and installation ease; the RAM ToughPod HD™ is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM ToughPod HD is an ideal solution for mounting tablets, small laptops and other similar devices. Requiring minimal space in the vehicle cab, it can be remove quickly without the use of tools. The versatility of the RAM ToughPod HD makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications which require a robust mounting platform for your tablet.
Low Profile, Low Cost and Extremely Robust:
- The minimalist design offers a low profile form factor while offering an extremely robust mounting platform
- Ideal mounting solution for fleet and service vehicle fleets with a varying range of vehicles. Stands up to the demands of field applications
Highly Versatile:
- Angle adjustment feature to compensate for varying floorboard angles
- Can be used as a horizontal or vertical flat surface drill-down mount
- aluminum post can be cut to size in order to accommodate varying vehicle configurations
Easy to Install and Remove:
- Works on most vehicles. Fast and simple installation, requires no drilling or modification to your vehicle
- Attaches using an existing seat rail bolt or seat track
- Remove the upper portion of the mount with the turn of one knob, creating valuable space in the cab when the mount is not in use
Afmetingen:
Van basis tot top klemhouder circa 60 cm.
12 inch (30.5 cm) aluminium buis van 21 mm diameter met C-Kogel: totaal lengte 37,5 cm, eenmalig in te korten.
OPTIE: extra lange aluminium buis van 18 inch (45 cm) waardoor de totale hoogte tot aan de top klemhouder circa 75 cm wordt.
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1.5" Rubber Ball Size

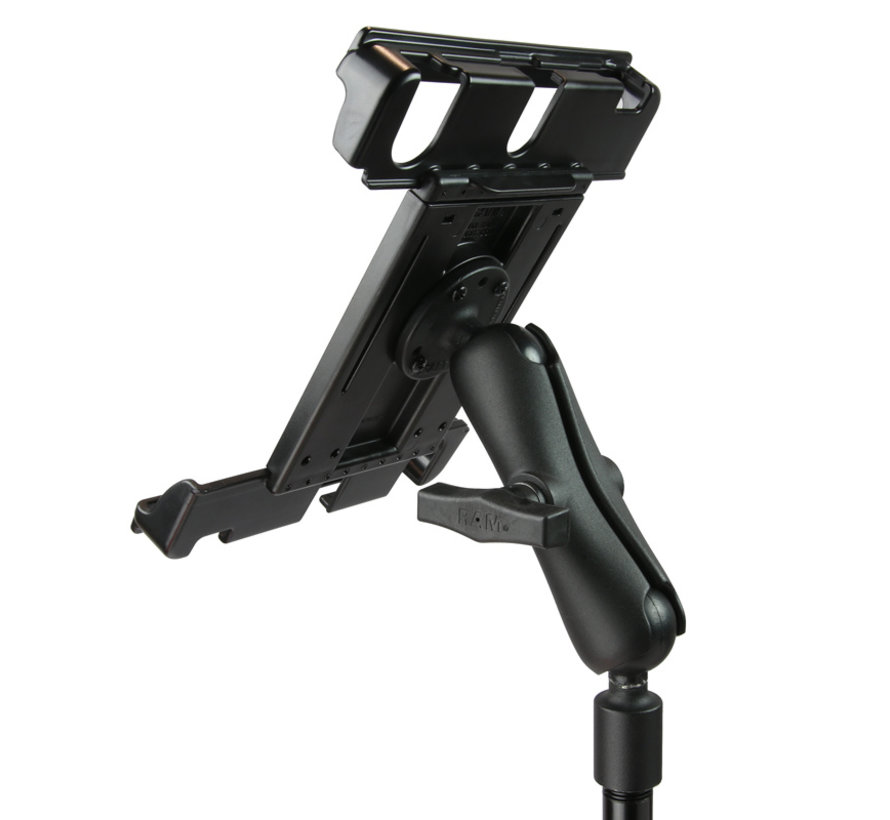

De RAM Tab-Tite cradle heeft een veermechanisme waardoor de tablet snel te verwijderen is uit de cradle. Alle knoppen en uitgangen blijven bereikbaar. Zeer geschikt voor de iPad Air en Galaxy TAB A 9.7 met dikkere bumpercase zoals Otterbox Defender en Griffin Survivor (zie afmetingen) .
The RAM-HOL-TAB20U consists of a spring loaded back plate and custom support cups for the Apple iPad Air. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB20U is just what you need to get the most out of your tablet.
This RAM Tab-Lock™ holder is compatible with the following tablets:
Apple iPad (5th Generation) with Case
Apple iPad (6th Generation) with Case
Apple iPad Air with Case
Apple iPad Air 2 with Case
Apple iPad Air 3 10.5 with case
Apple iPad Pro 10.5 (2nd Generation) with Case
Apple iPad 10.2 (7th) (A2200, A2198, A2232)
ASUS ZenPad 10 with Case
ASUS ZenPad 3S 10 with Case
ASUS ZenPad Z10 with Case
Huawei MediaPad M2 10.0 with Case
Lenovo Tab 2 A10-70 with Case
Lenovo Tab 4 10 with Case
Lenovo Tab 4 10 Plus with Case
Lenovo Tab3 10 Business with Case
Lenovo Yoga Tab 3 10 with Case
LG G Pad 10.1 with Case
LG G Pad II 10.1 with Case
LG G Pad X 10.1 with Case
LG G Pad X II 10.1 with Case
Samsung Galaxy Tab 10.1 with Case
Samsung Galaxy Tab 3 10.1 with Case
Samsung Galaxy Tab 8.9 with Case
Samsung Galaxy Tab A 9.7 with Case
Samsung Galaxy Tab A 10.5 with Case
Samsung Galaxy Tab E 9.6 with Case
Samsung Galaxy Tab Pro 10.1 with Case
Samsung Galaxy Tab S2 9.7 with Case
Samsung Galaxy Tab S4 10.5 with Case
Sony Xperia Tablet Z with Case
Cradle Dimensions:
Height: 9" to 11" (22.9 - 27.9 cm)
Width: 7.43" (18.9 cm)
Edge Depth: 0.87" (2.2 cm)
Demo beschikbaar in onze showroom.
Benieuwd naar de installatie? download hier de instructie in PDF.
