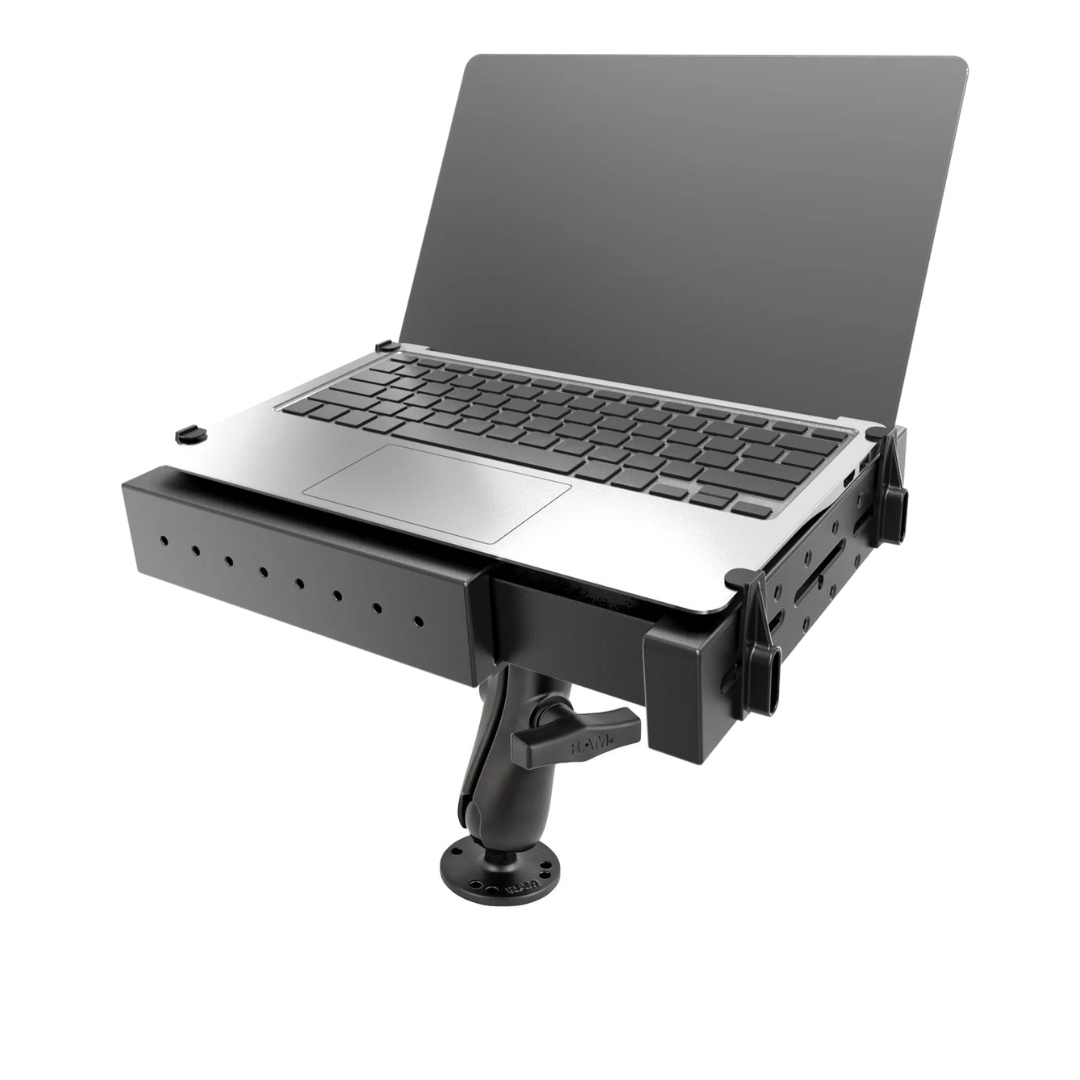

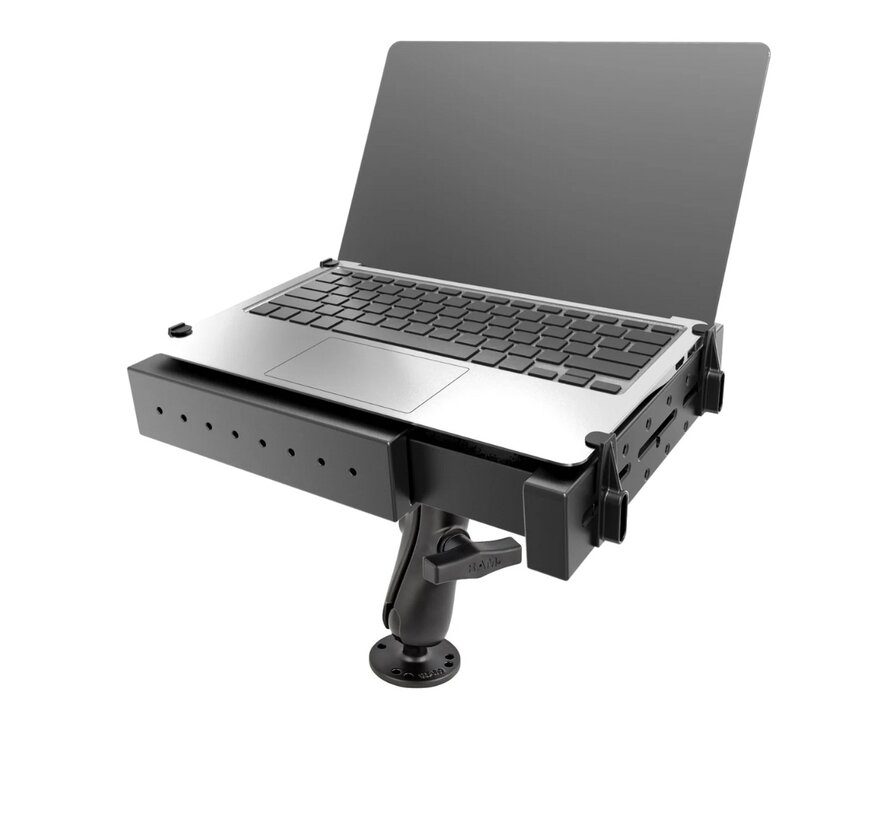

RAM Mount Laptophouder rechte klemmen met schroefmontage -RAM-101-234-3FL
Complete set voor montage van laptop op vast oppervlak in auto, op werkbank of b.v. in heftruck. Zeer stevig materiaal stootvast en gemakkelijk te reinigen. Dankzij het kogelsysteem is de instelling zeer flexibel en snel instelbaar. De rubberen kogels zorgen daarnaast voor demping van trillingen.
Set bestaat uit:
The RAM Tough-Tray™ is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four FLAT (4) side clamping arm; they allowing for your laptop to close completely while in the tray.. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.
Tough-Tray™ Dimensions:
Tray Depth: 10.0"
Tray Thickness: 2.125"
Tray Width (Expansion): 10" to 16" (min 253 mm, max 400 mm)
Side Clamp Arm Height: 0.5" (min) to 1.75" (max) (max 44 mm)
1. RAM Toughtray RAM-234-3FL voor laptops tussen 10-16 inch met rechte klemmen (foto 2)
Laptoptray met rechte klemmen die op hoogte en breedte ingesteld kunnen worden. De klep van de laptop kan zo ook gesloten worden. De laptoptray is uitgerust met sterke veer voor goede klemwerking. Ook geschikt voor dunnere laptops en Macbook.The RAM Tough-Tray™ is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four FLAT (4) side clamping arm; they allowing for your laptop to close completely while in the tray.. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.
Tough-Tray™ Dimensions:
Tray Depth: 10.0"
Tray Thickness: 2.125"
Tray Width (Expansion): 10" to 16" (min 253 mm, max 400 mm)
Side Clamp Arm Height: 0.5" (min) to 1.75" (max) (max 44 mm)
RAM-234-3FL laptoptray heeft rechte klemmen (laptop kan dicht geklapt worden).
2. RAM-101U klemhouder met 2 ronde base C-Kogel (foto 3)
consists of a double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to many RAM cradles, including all iPad cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
Overall Height:
klemhouder 4.75" (12,1 cm)
klemhouder plus kogels 19 cm
Material:
Powder Coated Marine Grade Aluminum
OPTIE: Extra lange klemhouder RAM-201U-D
The RAM-201U-D, long double socket arm, has a socket at both ends that accommodates 1.5" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.
Dimensions:
Overall Length: 9.125" (23,2 cm)
Socket-To-Socket Length: 8.75" (22.2 cm)
klemhouder plus kogels 27 cm
2. RAM-101U klemhouder met 2 ronde base C-Kogel (foto 3)
consists of a double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to many RAM cradles, including all iPad cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
Overall Height:
klemhouder 4.75" (12,1 cm)
klemhouder plus kogels 19 cm
Material:
Powder Coated Marine Grade Aluminum
OPTIE: Extra lange klemhouder RAM-201U-D
The RAM-201U-D, long double socket arm, has a socket at both ends that accommodates 1.5" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.
Dimensions:
Overall Length: 9.125" (23,2 cm)
Socket-To-Socket Length: 8.75" (22.2 cm)
klemhouder plus kogels 27 cm
